Tema Carkeeper 4820/3 3500kg

Totalvikt 3500kg Lastyta 480x209cm Däck 195/55 10"

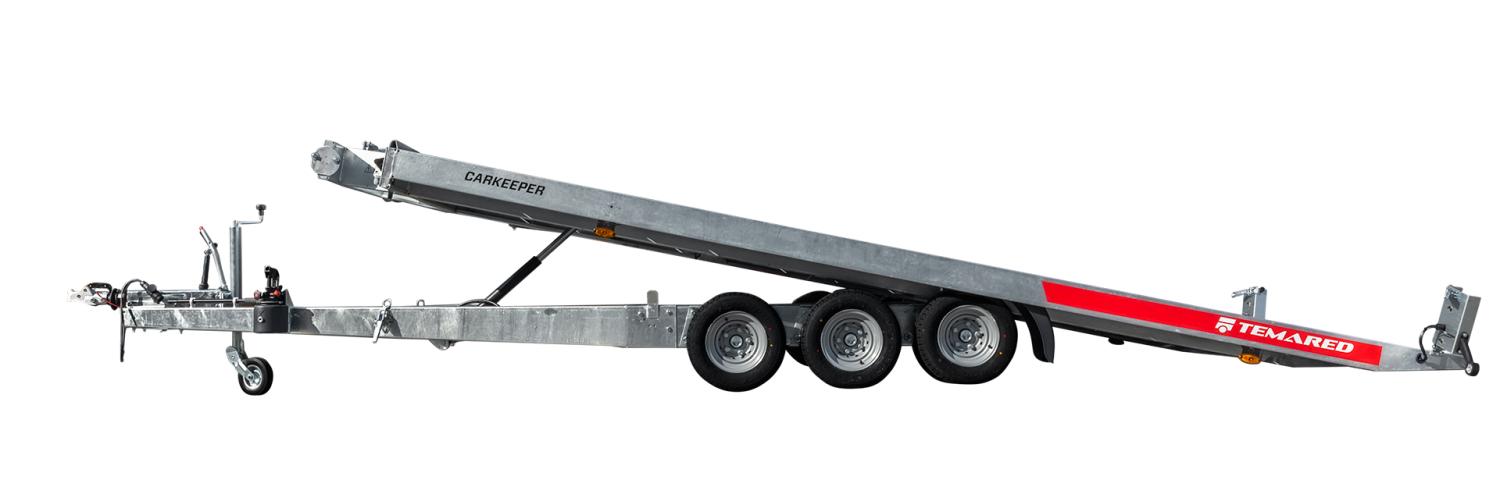

Car trailer equipped with a tilting transport surface function. The hydraulic cylinder used ensures smooth and easy operation during loading. The low departure angle of 11° facilitates loading of vehicles with low ground clearance. The durable frame made of closed profiles and the reinforced trolley and drawbar ensure safety and durability. Side beams with holes and a Lohr sheet metal floor, thanks to densely spaced holes, facilitate securing the transported vehicles. Numerous variants of filling configurations, such as aluminum corrugated sheet on plywood, aluminum corrugated sheet or aluminum panel, allow the semi-trailer to be adapted to individual requirements. Optionally, the semi-trailer can be equipped with full LED lighting. This is an ideal solution for companies looking for reliable equipment for transporting cars.

• GVWR: 3500
• Type of trailer: Carplatform
• Number of axles: 3 axes
• Type of suspension: torsion axle
• Type of drawbar: Drawbar V
• Wheel position: under
• Floor: Perforated steel floor with aluminum center infill (without plywood)
• Wheels: 195/55 R10C
• Trailer version: european
• Equipment: Automatic support wheel
• Equipment: Cable winch with brake

• EAN: 2010000468746
• GVWR: 3500 kg - 2000 kg
• Load capacity (kg): 2674
• Weight (kg): 826
• External length (mm): 6885
• Internal length (mm): 4685
• External width (mm): 2150
• Internal width (mm): 2090
• Overall height (mm): 1030
• Side height: Not applicable
• Sides material: Not applicable
• Brake: Braked
• Tilting: Yes
• Frame material: Steel
